Graph View

Graph View displays all pathways proposed for your target in one common graph. This can be very useful for quickly assessing the overall diversity of your pathways, or for checking if certain reactions or molecules appear in multiple pathways. You can access Graph View by clicking on the ‘Graph’ tab on the top right of your screen.

In Graph View, molecules and reactions are represented by color-coded, round and diamond nodes, respectively. See the “Graph View Legend” section below for more details.

There are three distinct ways to view the graph of pathways: Force, Linear, and Polar.

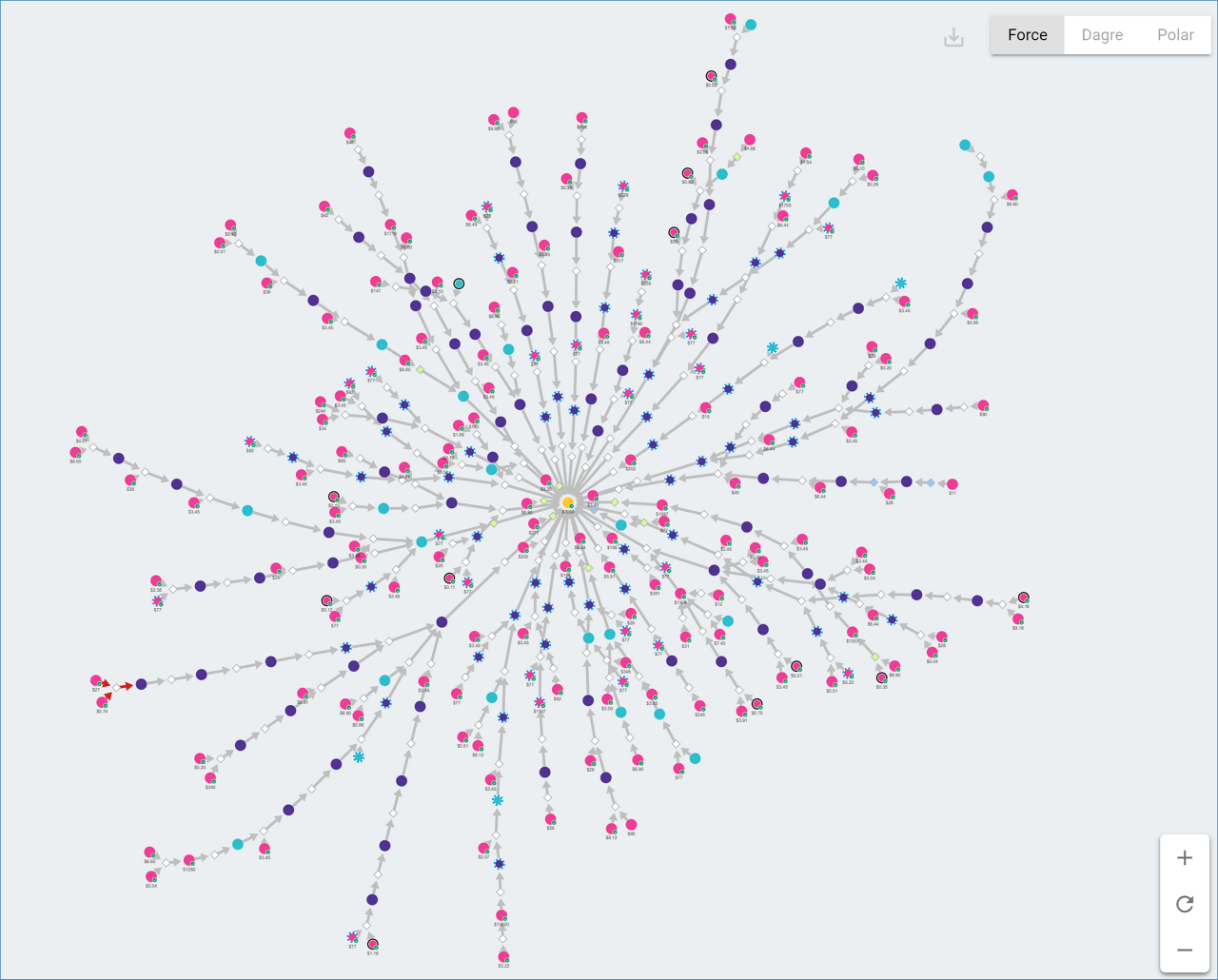

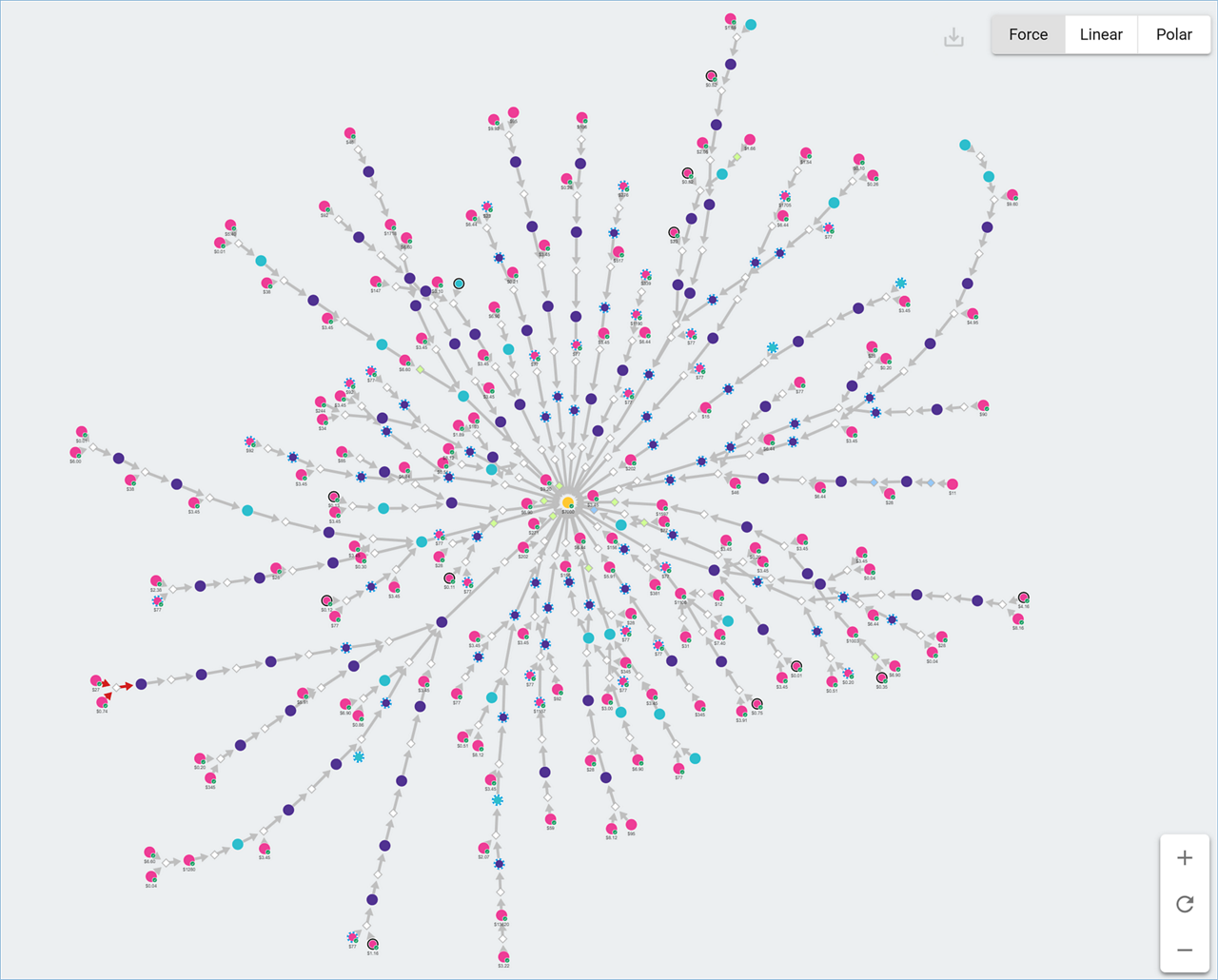

Force

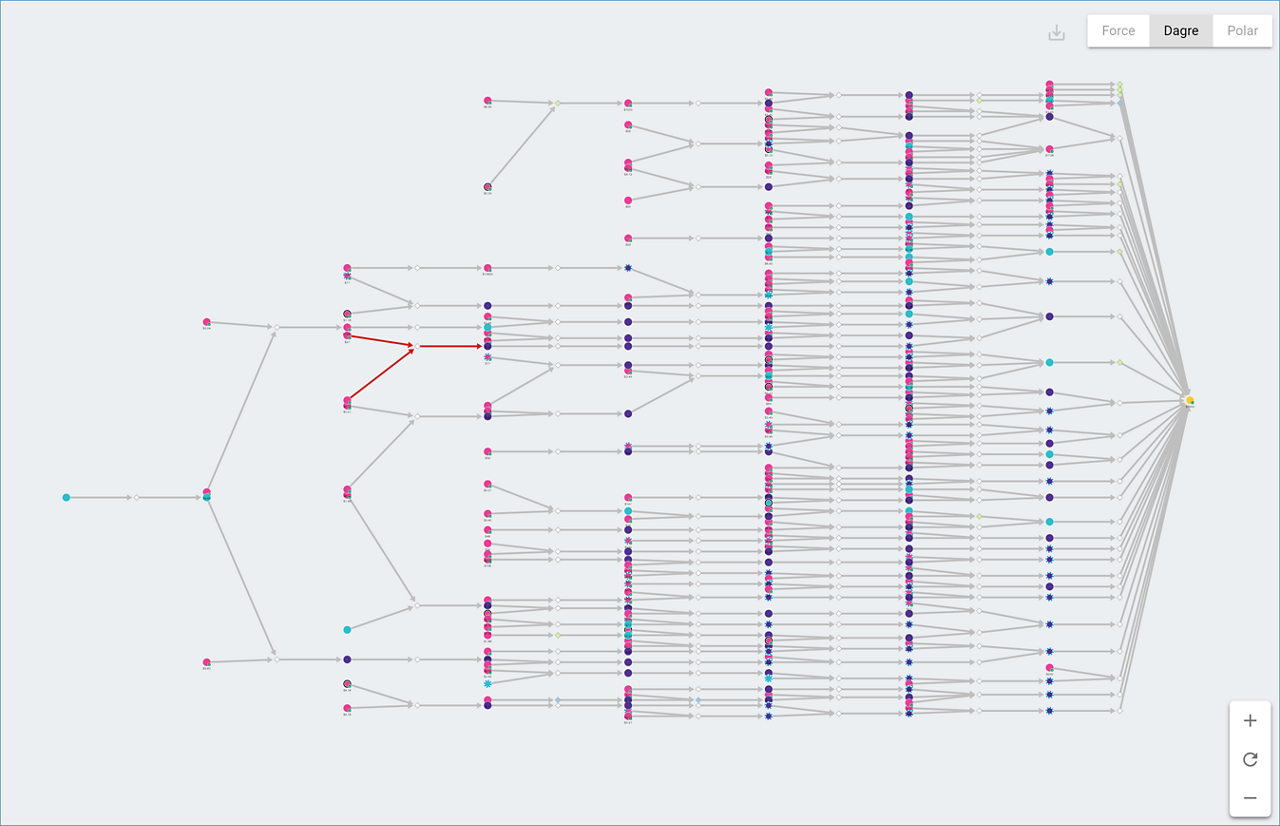

Linear

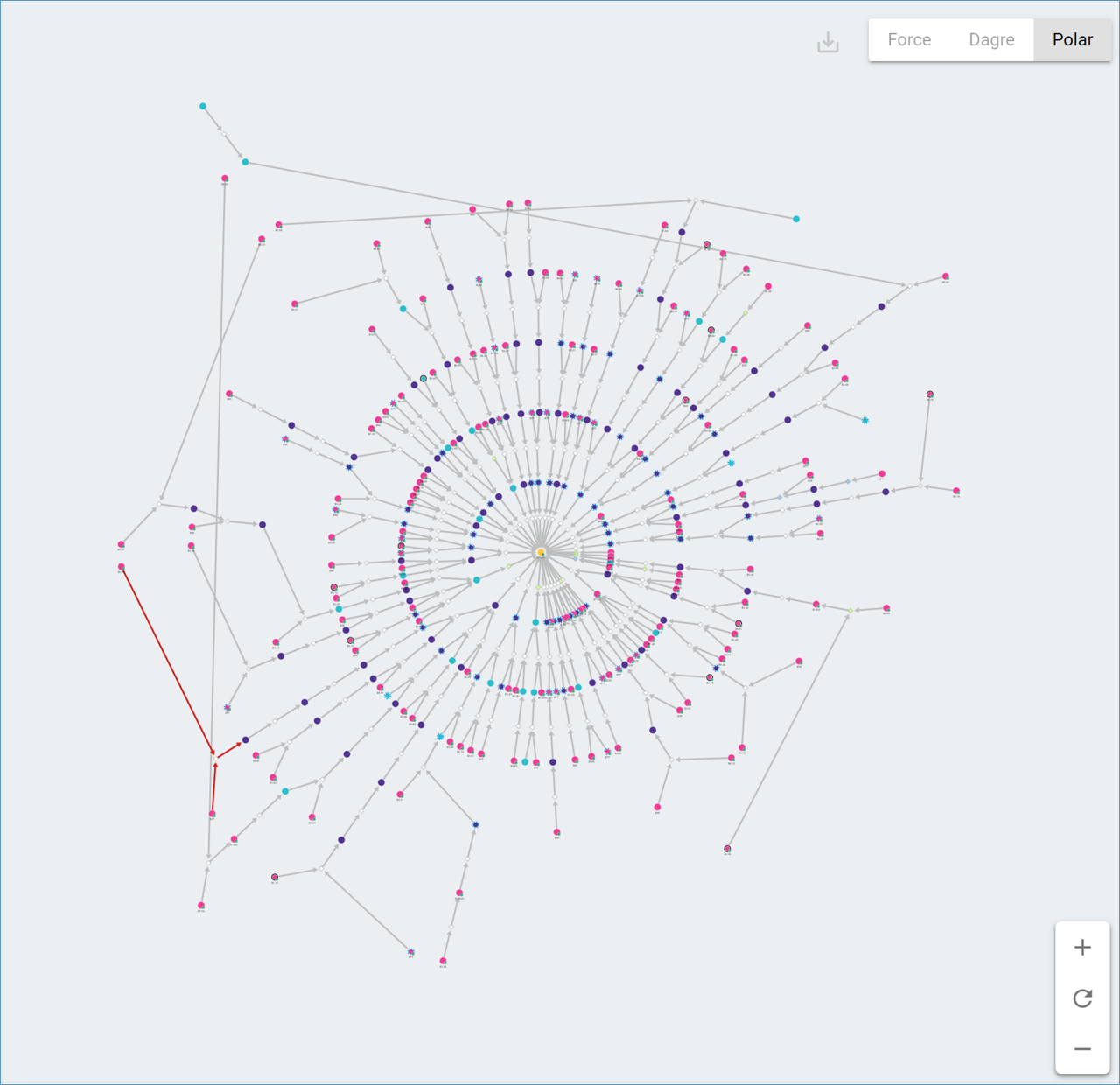

Polar

You can move the graph using your mouse to drag it in any direction. Zoom in and out using the controls at the lower right of the screen or your mouse wheel. Click the ‘Reset’ icon to return the view to center.

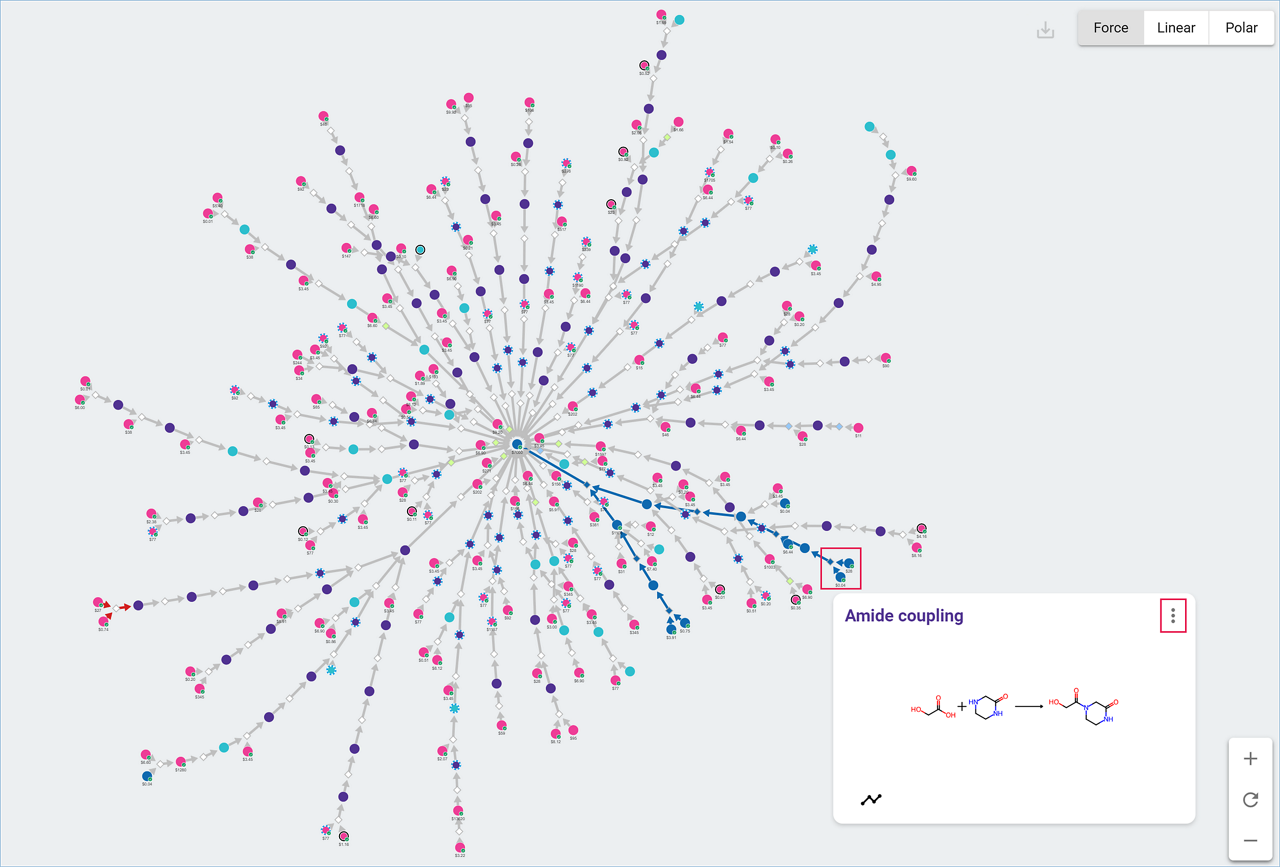

Hover over or click any molecule or reaction node to highlight the pathway it belongs to and open a pop-up window showing the molecule structure or reaction scheme, respectively. The pop-up window allows you to access the reaction or molecule card. (See “Molecule Cards” or “Reaction Cards” for more details.)

>> Molecule Cards
>> Reaction Cards

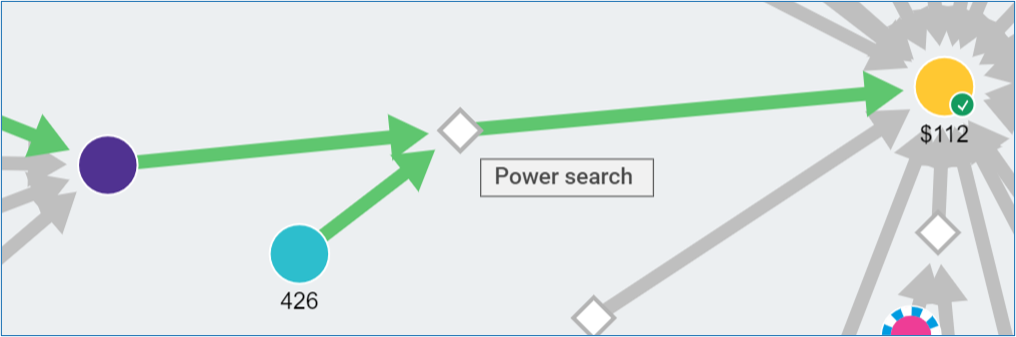

Hover over any colored reaction arrow to see a label indicating whether the reaction is nonselective or diasteroselective only (red arrows), or whether it is suggested as part of a Strategy or Power Search option (green arrows).
